CIB.T — Thyristor-Based Rectifier
Industrial thyristor-based rectifier for high-power direct-current systems, with up to 2,000 A.
- Voltage
- 24 / 48 / 110 / 125 / 220 VDC
- Current
- Up to 2,000 A
- Format
- Industrial panel per specification
The data shown represents the family’s range and possibilities. The equipment’s final configuration is defined according to the project’s requirements.
- Up to 2,000 A
- Output current
- 24 / 48 / 110 / 125 / 220 VDC
- DC voltages
- ≥ 90%
- Three-phase efficiency
- ≤ 1%
- Regulation
- ≤ 1%
- Ripple
About CIB.T
The CIB.T is NPT’s thyristor-based rectifier, developed for applications that demand high direct currents with operational robustness.
The architecture includes different rectification topologies — single-phase 2-pulse and three-phase 6- or 12-pulse — allowing the solution to be adapted to the project’s electrical and construction requirements.

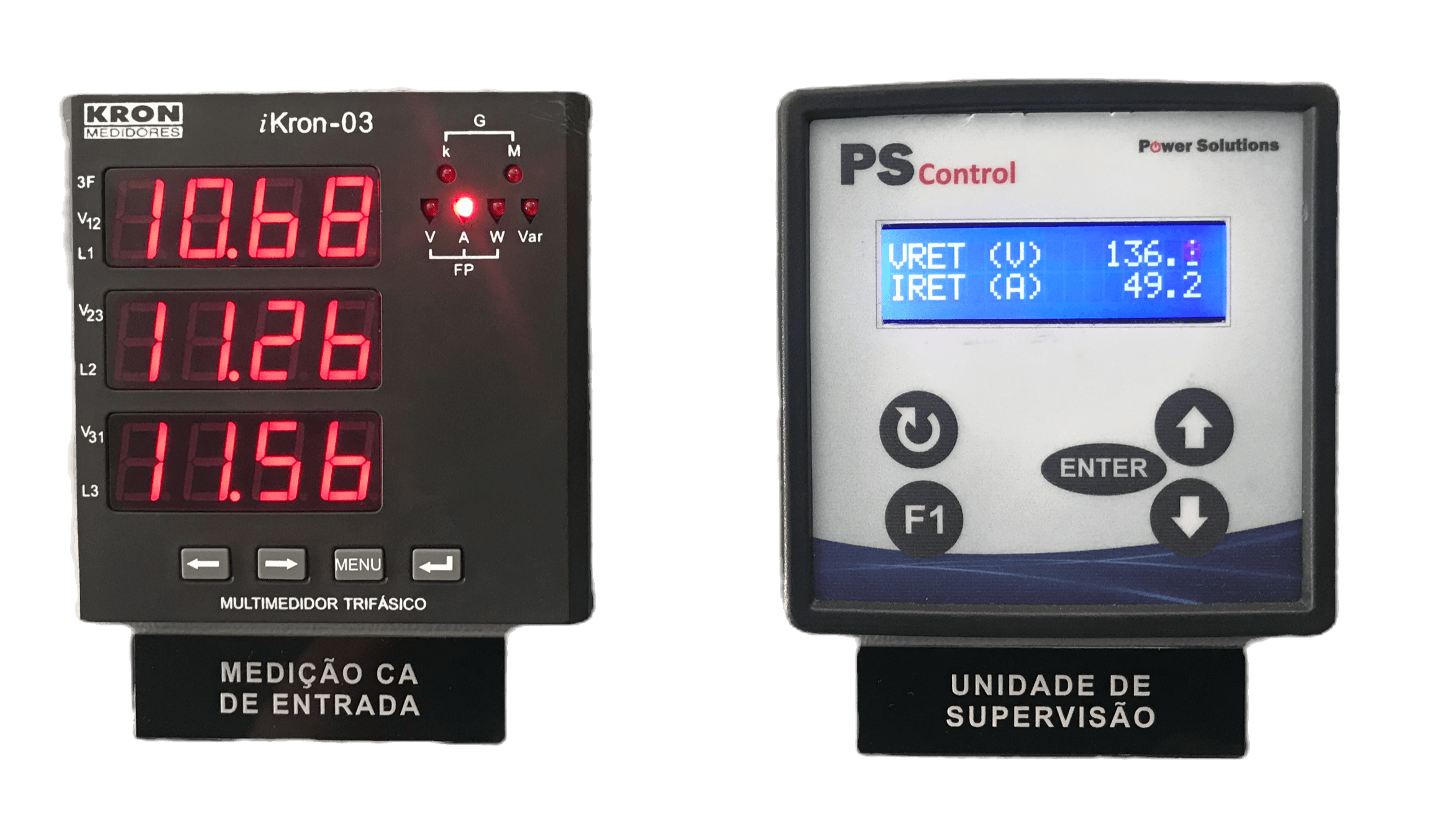

Local supervision tracks the rectifier’s voltage and current (VRET/IRET) in real time.
Technical highlights
- Thyristor-based technology for operation at output currents of up to 2,000 A
- Single-phase (2-pulse) and three-phase (6- or 12-pulse) topologies according to the project
- Supervision unit with rectifier voltage and current measurement
- Suited for large industrial plants and substations
Topology defined according to the application.
The CIB.T family includes different rectification topologies, allowing the solution to be adapted to the project’s electrical and construction requirements.
2 pulses
6 pulses
12 pulses
Installation conditions defined per project.
Operation documented between -10 °C and +50 °C, with derating of 2.5% per °C above 50 °C. Storage between -40 °C and +80 °C, relative humidity of 5–95%, and altitude below 2,500 m. Dimensions, paint finish, IP protection rating, sheet-metal thickness, and accessories are defined according to the project’s specification and configuration.
- Construction features
- Natural or forced ventilation according to the specified power
AC supply flexibility
Configurações de entrada CA
- 127/220 VAC single-phase
- 220/380/440/460 VAC three-phase
- Other configurations upon request
Input voltage tolerance of ±15%, with frequency of 60 Hz ±5%.
Stable DC voltage for critical loads
- DC voltage regulation ≤ 1%.
- Output ripple ≤ 1%.
- Power factor ≥ 0.75 (single-phase), ≥ 0.85 (three-phase), and ≥ 0.92 (optional three-phase).
- Efficiency ≥ 80% (single-phase) and ≥ 90% (three-phase).
Protection built into the system
Entrada CA
- Thermomagnetic circuit breakerper specification
- Varistor or Class II surge protectorper specification
- AC overvoltage and undervoltage supervisionstandard
- Phase failure or reversal detectionstandard
- Input contactoroptional
Saída CC
- Thermomagnetic circuit breaker or NH fuseper specification
- Class II surge protectorstandard
- LVD for battery or loadoptional
- Voltage-drop diode unit (UDQ)optional
- Blocking diodeoptional
- Ground fault detectionper specification
- DC overvoltage protectionstandard
- Overtemperature protectionstandard
- Firing failure detectionoptional
The panel tells you what’s happening.
- 20 × 4 LCD display
- 6 membrane keys
- 4 indicator LEDs
- Audible alarm (optional)
- History of up to 255 alarms in non-volatile memory
Details of the CIB.T
Integration into the operating environment
RS232 and the Modbus-RTU protocol are factory standard. An optional additional interface can be provided in RS232, RS485, or Ethernet, with SNMP, IEC 61850, and DNP3 protocols available as options, according to the integration required by the customer’s operation and maintenance environment. The panel has 8 NO outputs, 7 digital inputs, 1 analog reference output, and 8 analog inputs, with a history of up to 255 alarms in non-volatile memory.
